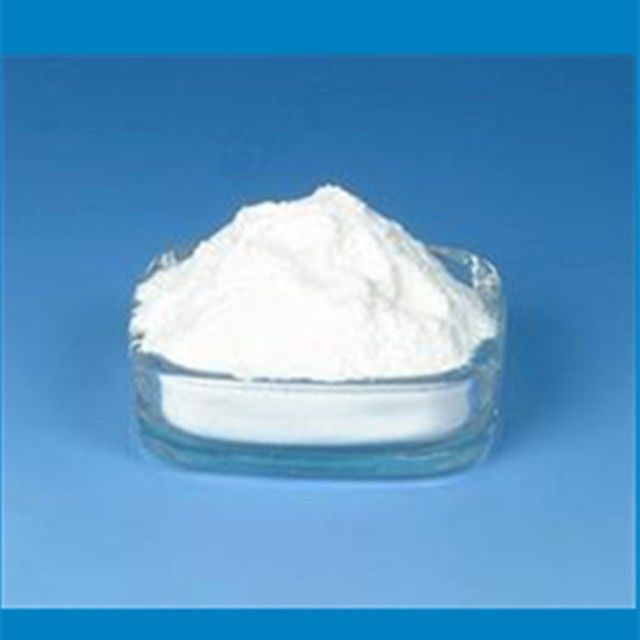

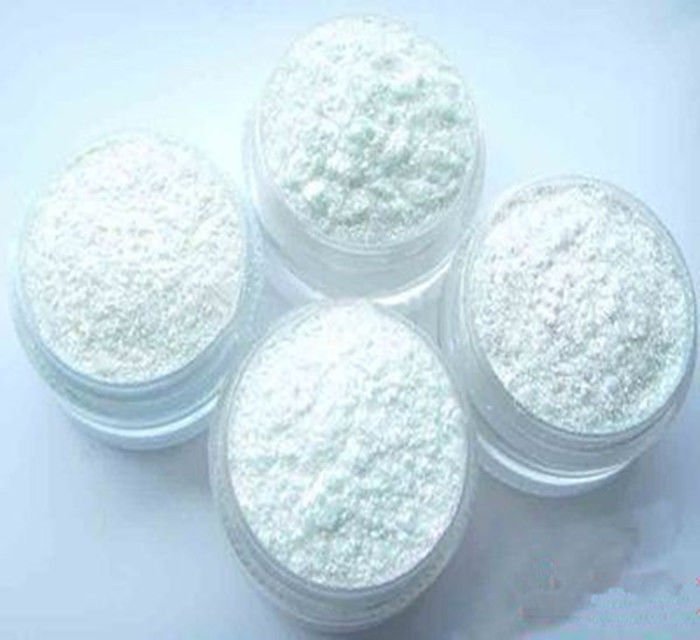

White High Purity 99.99% 0.7 Micron Alumina Powder

White High Purity 99.99% 0.7 Micron Alumina Powder

0.7 Micron Alumina Powder

0.6 Micron Alumina Powder

0.8 Micron Alumina Powder

Place of Origin:

China

Brand Name:

GONA

Certification:

ISO9001:2015

Model Number:

EM-A-07

Contact Us

Request A Quote
Product Details
Product Name:
Alumina For Lithium Ion Battery Separator
Color:
White
PSD:
D50:0.5-0.8;D99<4um
Packing:
10kgs/bag
CAS:
1344-28-1
Purity:
>99.9%
HS:
2818200000
Origin:
CHINA
Payment & Shipping Terms
Minimum Order Quantity
10kg
Packaging Details
10kgs/bag/box
Delivery Time
7days
Payment Terms
T/T
Product Description

0.7 micron alumina powder for Lithium ion battery separator





  Lithium ion batteries have emerged as the most popular energy storage system, but they pose safety issues under extreme temperatures or in the event of a thermal runaway. Lithium ion batteries with inorganic separators offer the advantage of safer operation.Unlike state-of-the-art polyolefin separators such as polypropylene (PP) which are selectively wettable with only certain electrolytes, the excellent electrolyte solvent wettability of α-Al2O3 allows the coated alumina separator to function with different electrolytes. The coated α-Al2O3 separator has a much higher resistance to temperature effects than its polyolefin counterparts, retaining its dimensional integrity at temperatures as high as 200ºC.



 This eliminates the possibility of a short circuit during thermal runaway. Lithium ion batteries assembled as half-cells and full cells with coated α-Al2O3 separator exhibit electrochemical performance comparable with that of polyolefin separators at room temperature. However, the cells with coated alumina separator shows better cycling performance under extreme temperatures in the temperature range of -30°C to 60°C. Therefore, the coated α-Al2O3 separator is very promising for application in safe lithium-ion batteries.



Application



  It is mainly used for the coating material of positive and negative pole diaphragm of lithium battery, which is beneficial to the stability of the battery.

  It is suitable for Lithium ion battery separator, and the battery can be used for electronic car, electronic intelligent products and energy storage products.



White High Purity 99.99% 0.7 Micron Alumina Powder 0

Specification



1. Chemical properties: Al2O3>99.9%

2. Color:white

3. PSD: D50=0.5-0.8um,D99<4um



ITEM INDEX ITEM INDEX
Al2O3% 99.9 D50 0.5-0.8um
Ca% <0.05 D90 <2um
Fe% <0.01 D99 <4um
Na% <0.4 BET 5-8m2/g



White High Purity 99.99% 0.7 Micron Alumina Powder 1



Product features





  Lithium ion batteries with alumina separator is fabricated for safety improvement.Alumina separator is coated on electrode by a scalable and cost-effective method.Lithium ion batteries with alumina separator perform better than conventional cells.



Factory supply 1 micron Lithium ion battery separator alumina powder 2



  The alumina ceramic coating provides a skeleton for the flexible seperator, improves the wear resistance of the seperator, prevents lithium dendrite from piercing, reduces heat shrinkage, improves temperature resistance, and the pores are stable with temperature, which can effectively improve the safety performance of the battery



1. Less magnetic foreign matters, stable electrical performance, low content of harmful ions;

2. High heat resistance, stable at high temperature;

3. The particle size distribution is very narrow, which can be coated with a very thin thermal insulation coating, with low thermal resistance; no small particles blocking Li + ion channel, no coarse particles scratching the film.



White High Purity 99.99% 0.7 Micron Alumina Powder 3



【Packing】 25kgs/poly-drum ,500kgs/pallet.

White High Purity 99.99% 0.7 Micron Alumina Powder 4



White High Purity 99.99% 0.7 Micron Alumina Powder 5



1 Q:What's the guarantee ?
A:Our guarantee for 12 months.18 hours' technical support by email, video or calling



2 Q:Do you provide equipment operation training?
A:Yes. We can will send one or two professional technicians (one is electrical engineer, one is mechanical engineer) to install and adjust the machines and help train the workers.



3 Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. Or it is 15-20 days if the goods are not in stock, it is according to quantity.



4 Q: How about the packing?
A:Usually we provide the packing as 50 kg Iron Drum or 25 plastic Drum ,if you have special requirements on them, we will according to you



White High Purity 99.99% 0.7 Micron Alumina Powder 6



  Shanghai Gona Industrial Co.Ltd is founded in 2006, and located in Songjiang Industrial District, rounded by National Engineering research Center of Ultrafine Powder(NERCUP).Our company is a R&D company specialized in technology development of functional powder materials.



  Our company has been recognized as “High-Tech Enterprise of Shanghai” since 2008. The project of the high-precision rare earth polishing powder passed high-tech achievements transformation, and its annual production reaches 2000 tons.

White High Purity 99.99% 0.7 Micron Alumina Powder 7
