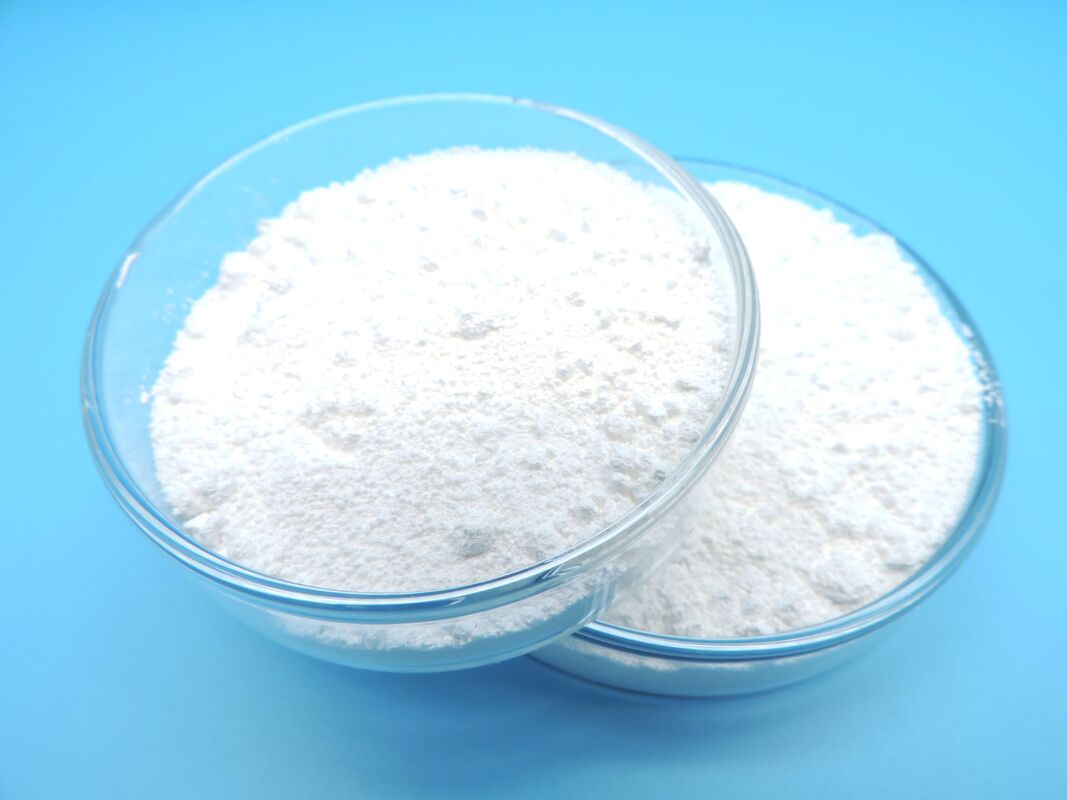

Micron Grade Alumina Powder Ceramic Coating Battery Separator

   Lithium ion batteries have emerged as the most popular energy storage system, but they pose safety issues under extreme temperatures or in the event of a thermal runaway. Lithium ion batteries with inorganic separators offer the advantage of safer operation.The coated α-Al₂O₃ separator has a much higher resistance to temperature effects than its polyolefin counterparts, retaining its dimensional integrity at temperatures as high as 200ºC.

【Application】

It is mainly used for the coating material of positive and negative pole diaphragm of lithium battery, which is beneficial to the stability of the battery.

It is suitable for Lithium ion battery separator,and the battery can be used for electronic car, electronic intelligent products and energy storage products.

【Specification】

1. Chemical properties: Al₂O₃>99.9%

2. Color:white

3.PSD: D50=0.8-1.2um,D99<6um

【Product features】

  Lithium ion batteries with alumina separator is fabricated for safety improvement. Alumina separator is coated on electrode by a scalable and cost-effective method.Lithium ion batteries with alumina separator perform better than conventional cells.

  The presence of the alumina can significantly improve the physical and chemical properties of battery separators. The alumina coating layer may reduce or prevent dendrite puncture, lithium plating and separator shrinkage during over-heating, hence significantly increasing safety performance for a lithium ion battery

1. Less magnetic foreign matters, stable electrical performance, low content of harmful ions;

2. High heat resistance, stable at high temperature;

3. The particle size distribution is very narrow, which can be coated with a very thin thermal insulation coating, with low thermal resistance; no small particles blocking Li + ion channel, no coarse particles scratching the film.

【Packing】 25kgs/poly-drum ,500kgs/pallet.

1.Q:What crystal form is alumina?

A:Alumina is in the alpha crystal form.

2. Q:What is loading port?
A:Usually is Shanghai.

3 Q: What can be the content of alumina?

A:The minimum content of alumina is 99.9%.

4 Q: Can you provide a quality inspection report for alumina?

A: Yes,We can provide COA and SDS for alumina.

  Shanghai huaming gona rare earth new materials co.Ltd was founded in 2006, and located in Songjiang Industrial District, rounded by National Engineering research Center of Ultrafine Powder(NERCUP).

 Our company is always paying great attention to the intellectual property and independent development, and pursuing innovation of science and technology. Our company has been recognized as “High-Tech Enterprise of Shanghai” since 2008. The project of the high-precision rare earth polishing powder passed high-tech achievements transformation, and its annual production reaches 2000 tons.
