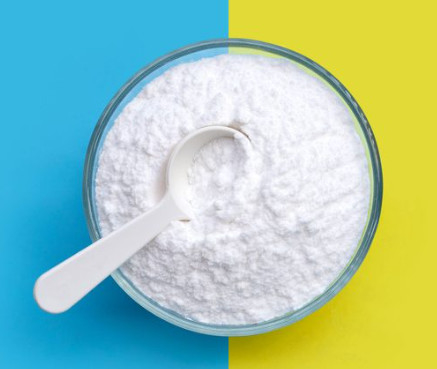

Cerium oxide polishing powder for fused silica window substrate

 Rare earth polishing materials are mainly used for polishing silicate materials such as glass. They belong to chemical mechanical polishing. Especially for glass surface polishing, they can meet the requirements of glass surface treatment in various industries.The window slice does not change the optical magnification, and only affects the optical path in the optical path. Transmittance, surface accuracy, thickness, parallelism, base material and other mechanical properties are important parameter indexes of window slice.


【Application】

It is suitable for optical spherical glass with abrasion between 80-120, flat glass polishing, such as silica glass, quartz glass and other common materials.


【Specification】

      1. chemical properties: TREO>99%, CeO₂/TREO= 99.9%
      2. Color: white
      3. PSD: D50=1.0~1.4um,D99<6um



【Product features】
(1) Strong versatility: the product has uniform particle distribution, can meet the requirements of smoothness and abrasion, and has a wide range of applications.
(2) No impurities: multiple screening procedures are adopted to remove impurities to ensure no scratches after use.
(3) Stable suspension: additives are added to keep the product in a good suspension state and easy to clean.


【Application methods】
Recommended specific gravity: 1.03-1.08, depending on the material and process parameters of the glass.
Applicable machine: flat polishing machine or spherical pendulum machine.
Suitable for workpiece: spherical lens with abrasion degree of 80-120, prism, motherboard substrate and other planar optical glass


【Packing】 25kgs/poly-drum ,500kgs/pallet;It can be according to customers requirements.




1 Q: Are you trading company or manufacturer?
A: We are a professional factory with more than 12 years of experience in this field. If you are convenience, we welcome you to visit our company.

2 Q: Do you provide equipment operation training?
A:Yes. We can will send one or two professional technicians (one is electrical engineer, one is mechanical engineer) to install and adjust the machines and help train the workers.

3 Q: How about the validity of the products?
A:According to the products you ordered

4 Q: What's the guarantee ?
Answer:
1). Our guarantee for 12 months.
2). 18 hours' technical support by email, video or calling
3). English manual and video tutorial
4). 24 hours on line service each day, free professional technical support.


  Shanghai Gona Industrial Co.Ltd is founded in 2006, and located in Songjiang Industrial District, rounded by National Engineering research Center of Ultrafine Powder(NERCUP).Our company is a R&D company specialized in technology development of functional powder materials. Focused on the control technology of powder particulate, SHGRENM provide several series product such as rare earth oxide with special particulate properties, cerium oxide polishing powder, catalyst materials,Alumina for Li+ battery separator.
