Micron Level Optical Glass Cerium Oxide Polishing Powder 1um

Micron Level Optical Glass Cerium Oxide Polishing Powder 1um

Optical Glass Cerium Oxide 1um

Polishing Optical Glass Cerium Oxide Powder

Place of Origin:

China

Brand Name:

GONA

Certification:

ISO9001:2015

Model Number:

GM-212

Contact Us

Request A Quote
Product Details
Product Name:
1.2Micron Optical Glass Cerium Oxide Polishing Powder
Composition:
Cerium Oxide
Color:
Light Yellow
Patical Size:
D50=1.0-1.4um
Usage:
Optical Glass
Packing:
25kg/drum,bag
TERO:
>94%
CAS:
1306-38-3
Payment & Shipping Terms
Minimum Order Quantity
Shipping ≥200kg ;Airline contact us
Packaging Details
25kgs/drum , 500 kgs/pallet, 1cmb/pallet
Delivery Time
2 weeks
Payment Terms
T/T
Product Description

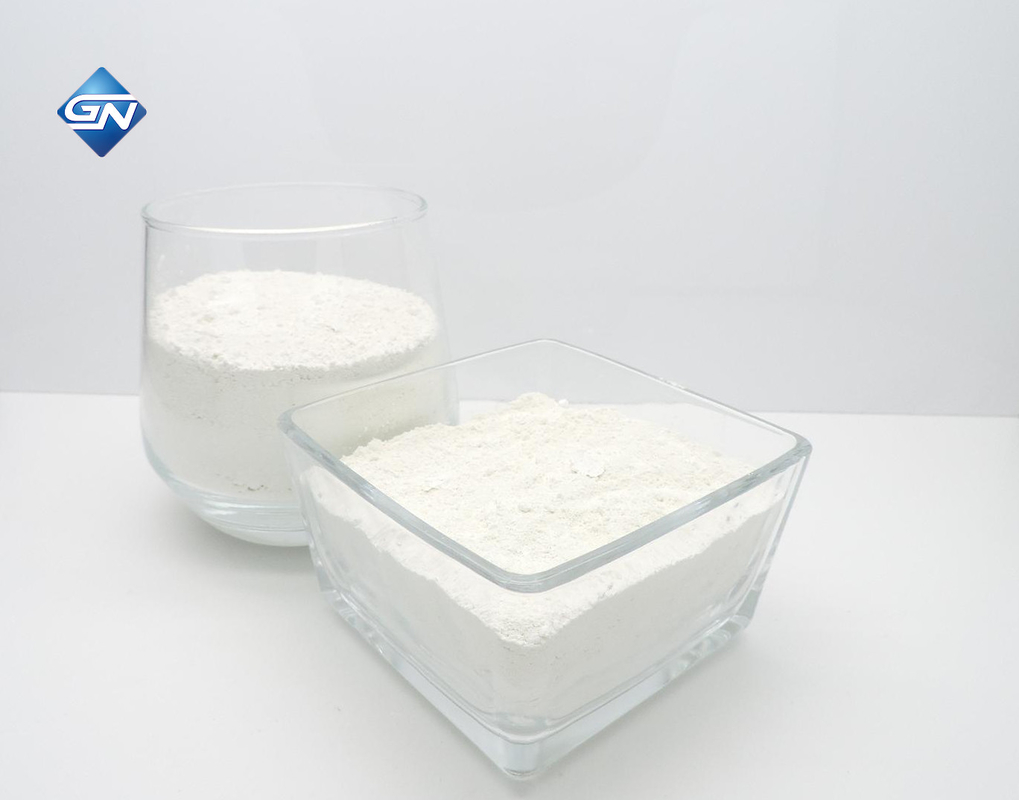

Micron Level Optical Glass Cerium Oxide Polishing Powder 1μm



  Optical glass can be used to manufacture components such as lenses, prisms, reflectors, and windows in optical instruments, and is an important component of optical instruments. With the continuous integration of optics, electronic information science, and new materials science, the application of optical glass in the transmission and storage of light, as well as in the field of optoelectronic displays, is rapidly changing, and has also become an important fundamental material in the information society.


  K9 glass is a typical representative of optical glass. Due to its unique physical and chemical properties, it is widely used in the optical industry. However, K9 glass is a hard and brittle material that is difficult to process, especially in high-end optical component applications, which have high requirements for the processing of K9 optical glass.


Application

It is suitable for optical spherical glass with abrasion more than 80, flat glass polishing, such as K9 materials.

Micron Level Optical Glass Cerium Oxide Polishing Powder 1um 0
【Specification】

      1. Chemical properties: TREO>94%, CeO2/TREO=60-70%
      2. Color:light yellow
      3.PSD: D50=1.0-1.4um,D99<6um



ITEM INDEX ITEM INDEX
TREO% 94 D50 1.0-1.4um
CeO2/ITREO% 60-70% D90 <4um
La2O3/TREO% 20-30% D99 <6um




Micron Level Optical Glass Cerium Oxide Polishing Powder 1um 1
【Product features】
(1) Strong versatility: the product has uniform particle distribution, can meet the requirements of smoothness and abrasion, and has a wide range of applications.
(2) No impurities: multiple screening procedures are adopted to remove impurities to ensure no scratches after use.
(3) Stable suspension: additives are added to keep the product in a good suspension state and easy to clean.


【Application methods】
Recommended specific gravity: 1.03-1.08, depending on the material and process parameters of the glass.
Applicable machine: flat polishing machine or spherical pendulum machine.
Suitable for workpiece: spherical lens with abrasion degree of 80-120, prism, motherboard substrate and other planar optical glass
Micron Level Optical Glass Cerium Oxide Polishing Powder 1um 2

【Packing】 25kgs/poly-drum ,500kgs/pallet;It can be according to customers requirements.
Micron Level Optical Glass Cerium Oxide Polishing Powder 1um 3


Micron Level Optical Glass Cerium Oxide Polishing Powder 1um 4
1 Q: Are you trading company or manufacturer?
A: We are a professional factory with more than 12 years of experience in this field. If you are convenience, we welcome you to visit our company.


2 Q: How can you get sample?
A: Free samples are available, but on the basis that you pay the courier charges.


3 Q:What's your delivery time?
A:Usually we will arrange the shipment within 14 days.


4.Q:How about the packing?
A:Usually we provide the packing as 50 kg Iron Drum or 25 plastic Drum ,if you have special requirements on them, we will according to you.


Micron Level Optical Glass Cerium Oxide Polishing Powder 1um 5
  Our company is always paying great attention to the intellectual property and independent development, and pursuing innovation of science and technology. Our company has been recognized as “High-Tech Enterprise of Shanghai” since 2008. The project of the high-precision rare earth polishing powder passed high-tech achievements transformation, and its annual production reaches 2000 tons.
We will always adhere to the philosophy of “quality first” business, and improve the quality of our product and service actively.


Micron Level Optical Glass Cerium Oxide Polishing Powder 1um 6

Micron Level Optical Glass Cerium Oxide Polishing Powder 1um 7
Micron Level Optical Glass Cerium Oxide Polishing Powder 1um 8
