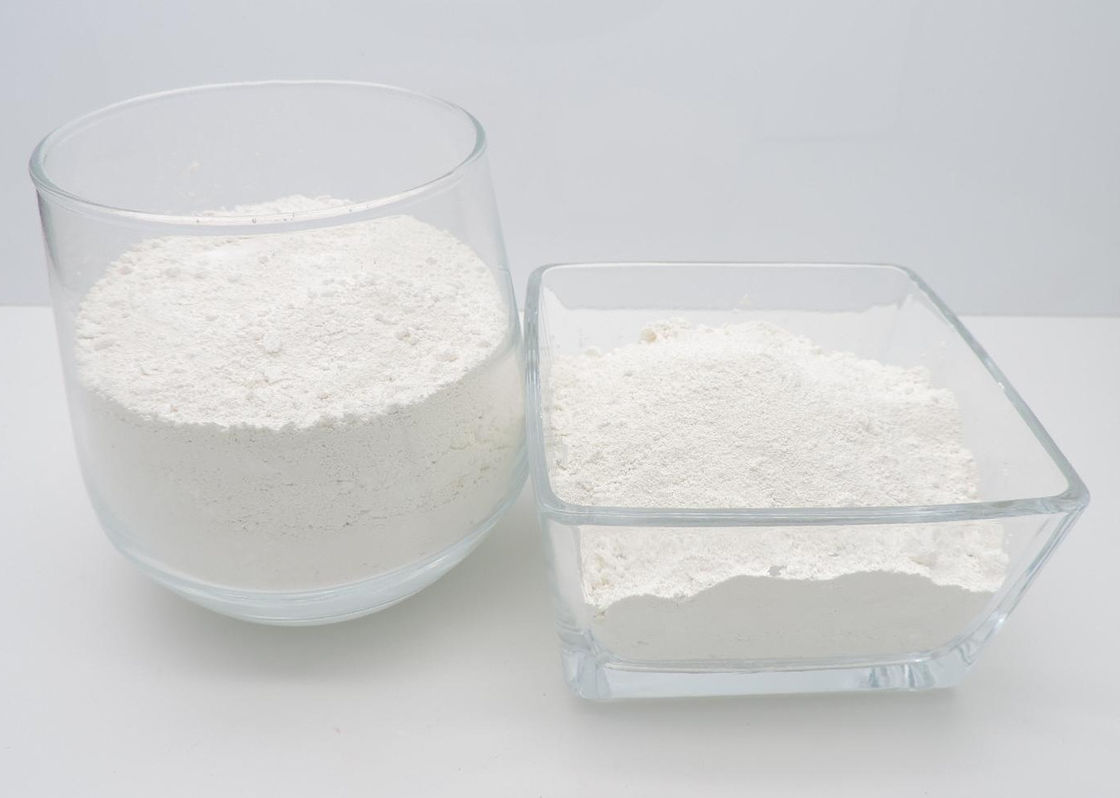

Optical Grade Cerium Oxide Polishing Powder Lens Module Glass

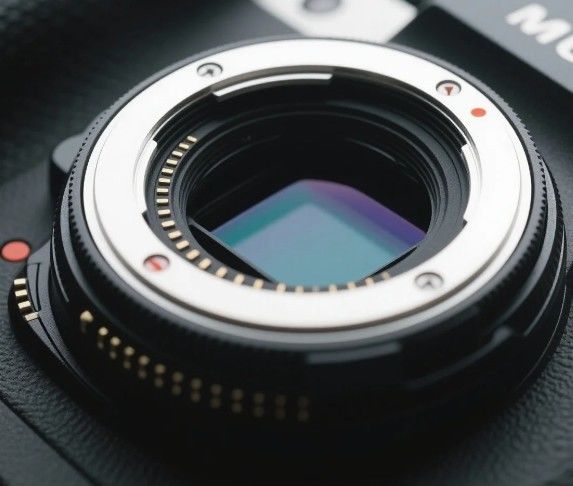

  As a core key component in military and civilian fields such as astronomical telescopes, artificial intelligence (AR/VR), semiconductor chip lithography, next-generation communication, medical equipment imaging, and new energy, lens modules have a huge market demand, especially in the field of large optical engineering projects in the aerospace and high-tech industries, which require tens of thousands of large quantities of special performance ultra high precision optical components with meter level apertures.

【Application】

It is suitable for optical spherical glass with abrasion more than 80, flat glass polishing, such as K9 materials.


【Specification】

      1. Chemical properties: TREO>94%, CeO₂/TREO= 60-70%
      2. Color: light yellow
      3. PSD: D50=1.0-1.4um,D99<6um



【Product features】
(1) Strong versatility: the product has uniform particle distribution, can meet the requirements of smoothness and abrasion, and has a wide range of applications.
(2) No impurities: multiple screening procedures are adopted to remove impurities to ensure no scratches after use.
(3) Stable suspension: additives are added to keep the product in a good suspension state and easy to clean.


【Application methods】
Recommended specific gravity: 1.03-1.08, depending on the material and process parameters of the glass.
Applicable machine: flat polishing machine or spherical pendulum machine.
Suitable for workpiece: spherical lens with abrasion degree of 80-120, prism, motherboard substrate and other planar optical glass


【Packing】 25kgs/poly-drum ,500kgs/pallet;It can be according to customers requirements.
