1 Micron Alumina Powder

1 Micron Alumina Powder

1 Micron Alumina Powder

0.8um Alumina Powder

1.0um Alumina Powder

Place of Origin:

China

Brand Name:

Gonare

Certification:

ISO9001:2015

Model Number:

EM-A-1

Contact Us

Request A Quote
Product Details
Product Name:
Alumina For Lithium Ion Battery Separator
Color:
White
PSD:
D50: 0.8-1.0;D99<6um
Packing:
10kgs/bag
CAS:
1344-28-1
Purity:
>99.9%
Payment & Shipping Terms
Minimum Order Quantity
10kg
Packaging Details
10kgs/bag/box
Delivery Time
7days
Payment Terms
T/T
Product Description

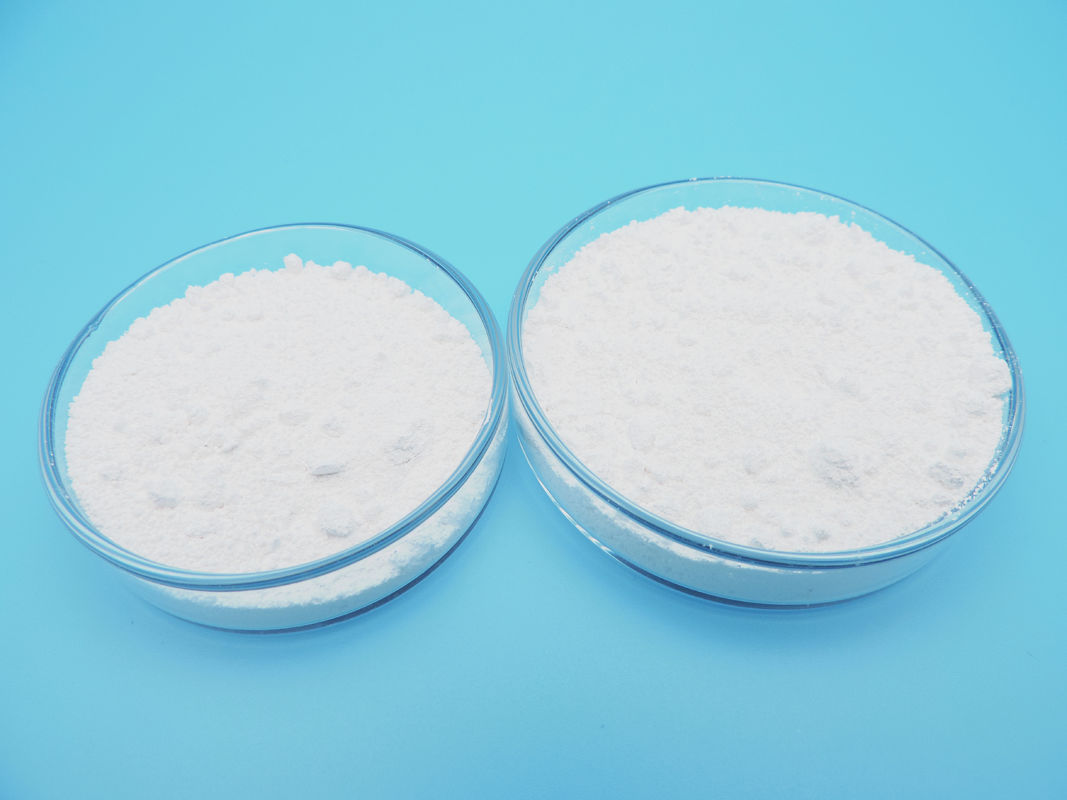

1 micron alumina powder for Lithium ion battery separator





   Lithium ion batteries have emerged as the most popular energy storage system, but they pose safety issues under extreme temperatures or in the event of a thermal runaway. Lithium ion batteries with inorganic separators offer the advantage of safer operation.The coated α-Al2O3 separator has a much higher resistance to temperature effects than its polyolefin counterparts, retaining its dimensional integrity at temperatures as high as 200ºC.



 The coated α-Al2O3 separator does not react with LTO even after many charge/discharge cycles. Fabrication of the electrode-supported α-Al2O3 separator is scalable and cost-effective, offering high potential for practical application in industrial lithium ion battery manufacturing.



Application



It is mainly used for the coating material of positive and negative pole diaphragm of lithium battery, which is beneficial to the stability of the battery.

It is suitable for Lithium ion battery separator,and the battery can be used for electronic car, electronic intelligent products and energy storage products.



1 Micron Alumina Powder 0

Specification



1. Chemical properties: Al2O3>99.9%

2. Color:white

3.PSD: D50=0.8-1.2um,D99<6um



ITEM INDEX ITEM INDEX
Al2O3% 99.9 D50 0.8-1.2um
Ca% <0.05 D90 <3um
Fe% <0.01 D99 <6um
Na% <0.4 BET 5-8m2/g



1 Micron Alumina Powder 1



Product features



  Lithium ion batteries with alumina separator is fabricated for safety improvement. Alumina separator is coated on electrode by a scalable and cost-effective method.Lithium ion batteries with alumina separator perform better than conventional cells.



Factory supply 1 micron Lithium ion battery separator alumina powder 2





  The presence of the alumina can significantly improve the physical and chemical properties of battery separators. The alumina coating layer may reduce or prevent dendrite puncture, lithium plating and separator shrinkage during over-heating, hence significantly increasing safety performance for a lithium ion battery



1. Less magnetic foreign matters, stable electrical performance, low content of harmful ions;

2. High heat resistance, stable at high temperature;

3. The particle size distribution is very narrow, which can be coated with a very thin thermal insulation coating, with low thermal resistance; no small particles blocking Li + ion channel, no coarse particles scratching the film.





1 Micron Alumina Powder 3



【Packing】 25kgs/poly-drum ,500kgs/pallet.

1 Micron Alumina Powder 4



1 Micron Alumina Powder 5



1.Q:What documents you provide?
A:Usually, we provide Commerical Invoice, Packing List, Bill of loading, COA , and Origin certificate. If your markets have any special   requirements, let us know.



2. Q:What is loading port?
A:Usually is Shanghai.



3 Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. Or it is 15-20 days if the goods are not in stock, it is according to quantity.



4 Q: What are your terms of payment?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance, balance before shipment.

If you have other questions, please feel free to contact us.





1 Micron Alumina Powder 6



  Shanghai Gona Industrial Co.Ltd is founded in 2006, and located in Songjiang Industrial District, rounded by National Engineering research Center of Ultrafine Powder(NERCUP).



 Our company is always paying great attention to the intellectual property and independent development, and pursuing innovation of science and technology. Our company has been recognized as “High-Tech Enterprise of Shanghai” since 2008. The project of the high-precision rare earth polishing powder passed high-tech achievements transformation, and its annual production reaches 2000 tons.
